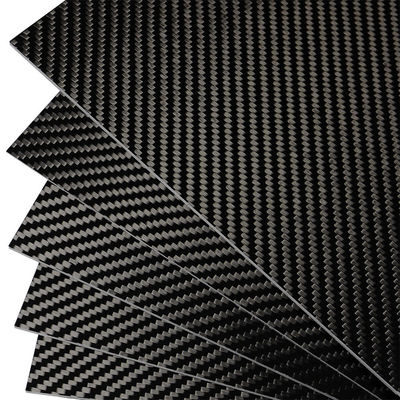

Superior Mechanical Performance 3K Twill Roll Wrapped Carbon Fibre Plate / Sheet

Descrição de produto

Superior Mechanical Performance 3K Twill Roll Wrapped Carbon Fibre Plate / Sheet

Carbon Fiber is a very strong and lightweight material. The woven carbon fiber threads, which are set in resin to form a pattern, when reflected in light, that pattern is visually enhanced.

A Roll Wrapped Carbon Fiber Plate is a flat composite panel manufactured using the roll-wrapping process, a technique more commonly applied to tubes but also adaptable for making high-performance plates. Here’s a clear breakdown for you:

What It Is

• Material: Made from high-quality carbon fiber fabric or unidirectional prepreg (pre-impregnated with resin).
• Process: Layers of carbon fiber are wrapped and compressed around a mold or laid on a flat surface using roll-wrapping machinery, then cured under heat and pressure.
• Structure: Usually consists of multiple fiber orientations (0°, 90°, ±45°) to balance strength, stiffness, and stability.

Key Features

• High Strength-to-Weight Ratio: Extremely strong yet lightweight compared to metals.
• Excellent Rigidity: Provides high stiffness, especially when reinforced with unidirectional layers.
• Customizable Thickness: Can be manufactured in thin sheets or thick structural plates.
• Smooth Finish: Roll-wrapping often results in a cleaner, glossier finish compared to hand lay-up.
• Low Thermal Expansion: Stable in temperature changes.

Applications

• Aerospace and UAV structures
• Robotics arms and machine parts
• Automotive and motorsports panels
• Marine equipment
• Industrial machinery requiring lightweight, stiff plates

Roll wrapping is more commonly associated with carbon fiber tubes. For plates, manufacturers often use compression molding, vacuum infusion, or autoclave curing. But “roll wrapped carbon fiber plate” can sometimes refer to plates cut from roll-wrapped tube material or specially produced flat laminates with the same method.

Carbon Fiber Sheet Plate Specification:
