Custom Made Carbon Fiber Tubes | Precision Composite Tube Manufacturer
Custom made carbon fiber tubes are the preferred solution for industries that demand lightweight construction, exceptional strength, and precise dimensional accuracy. Compared with traditional metal tubing, carbon fiber composite tubes offer a superior strength-to-weight ratio, excellent corrosion resistance, and long-term durability, making them ideal for aerospace, robotics, medical equipment, automotive, marine, sports equipment, and industrial automation.
As a professional custom carbon fiber tube manufacturer, we provide high-quality composite tube solutions tailored to your drawings, specifications, and application requirements. From prototype development to mass production, our experienced engineering team ensures every product meets strict quality standards.
Why Choose Custom Carbon Fiber Tubes?
Every application has unique performance requirements. Standard tubes may not always provide the ideal dimensions, strength, or surface finish. Custom manufacturing allows you to optimize every aspect of the tube for maximum performance.
Key Benefits
- Lightweight yet extremely strong
- High stiffness and excellent rigidity
- Outstanding fatigue resistance
- Corrosion and chemical resistance
- Low thermal expansion
- Excellent vibration damping
- Electrically conductive or insulating options
- Long service life with minimal maintenance
These advantages make carbon fiber tubes an excellent replacement for aluminum, steel, and fiberglass components.
Custom Manufacturing Capabilities
We manufacture carbon fiber tubes in a wide variety of specifications to satisfy different engineering applications.

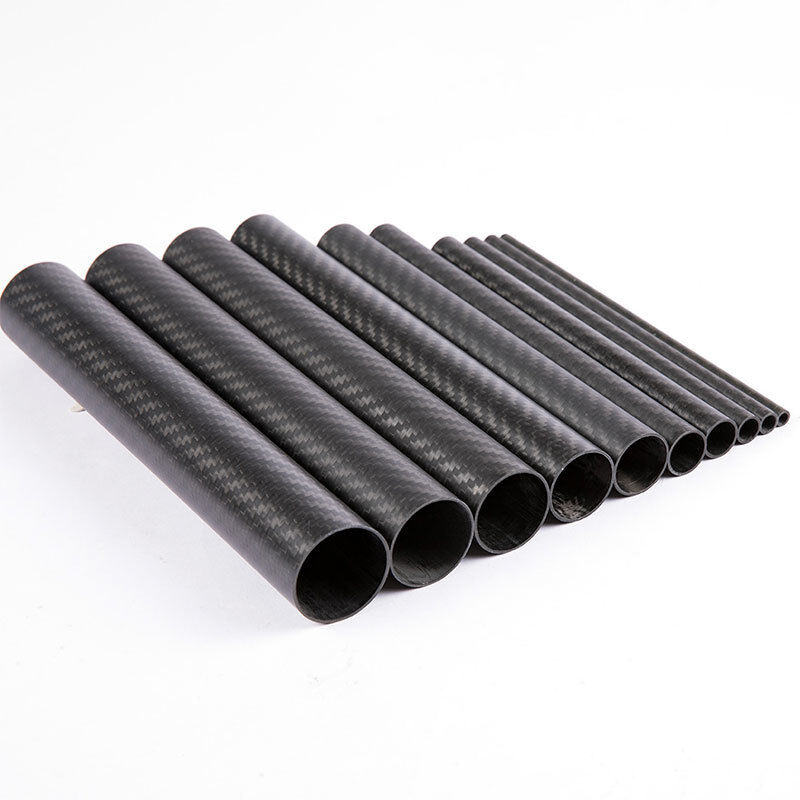

Custom Dimensions
- Outside diameter: 3 mm–500 mm
- Inside diameter customized
- Wall thickness: 0.5 mm–20 mm
- Length up to 3000 mm or customized
Surface Finish Options
- Glossy
- Matte
- Smooth sanded
- Textured finish
- Painted finish

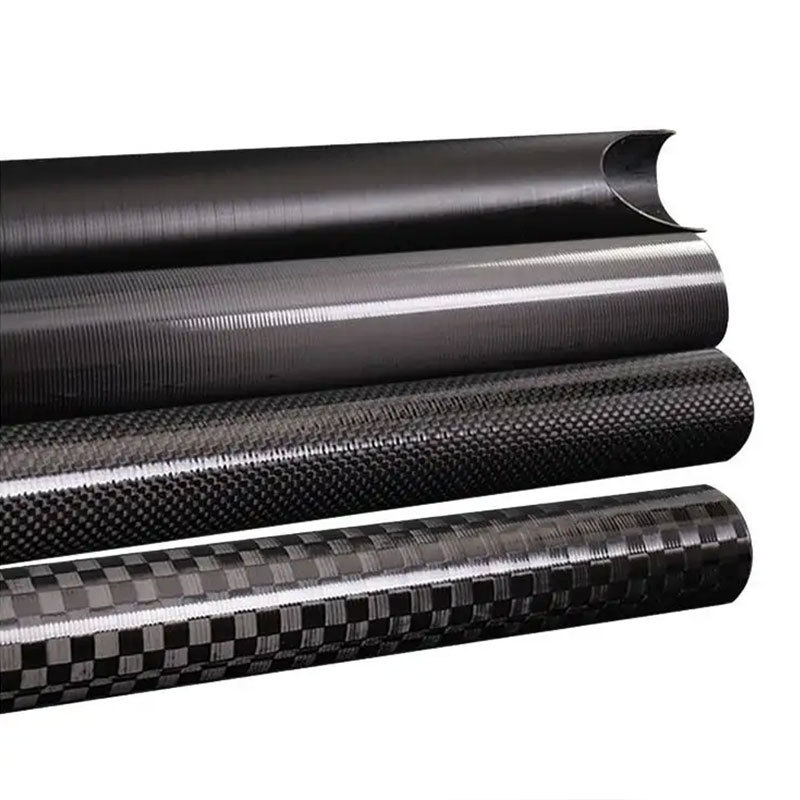

Fiber Weave Choices
- 3K Twill Weave
- Plain Weave
- UD (Unidirectional)
- Forged Carbon
- Colored Carbon Fiber
OEM & ODM Services
We offer complete OEM and ODM manufacturing services for customers worldwide.
Our customization services include:
- Custom diameters and lengths
- Custom wall thickness
- Special fiber orientation
- Logo printing
- CNC machining
- Drilling and slotting
- Threading
- End fitting installation
- Assembly services
- Custom packaging
Contact Your Trusted Carbon Fiber Tube Manufacturer
If you are looking for custom made carbon fiber tubes, OEM carbon fiber tube manufacturing, or precision composite tube solutions, our team is ready to assist you. Contact us today with your drawings or technical requirements, and we'll provide a customized solution that meets your exact specifications with outstanding quality and competitive pricing.
| Material |
Carbon Fiber Tube |
| Shape |
Round/oval |
| Technology |
Roll-wrapped or pultrusion |
| Dimension |
The existing inner diameter of the mold is 4mm-50mm with a length of 1m. |
| Customizable size: The maximum diameter can be 200mm, the longest can be 3m. |
| Surface |
Black glossy/matte surface/painted |
| Glossy 3k weave/matte 3k weave |
| Color metal wire weave |
| Feature |
lightweight, high strength |
| Working Temperature |
Usually, -30-120 degrees, if special requirement, please let us know. |
| Place Of Origin |
China |
| Function |
Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products |
| Tolerance |
Diameter Tolerance: +/-0.1mm |
| Length Tolerance |
+/-1mm |
Manufacturing Process
The manufacturing process involves several steps:
- Material Selection: High-quality yarns are carefully selected, considering their tensile strength, modulus, and other required properties.
- Prepreg Production: To create prepreg sheets, the selected yarns are impregnated with a thermoset resin, usually epoxy. These prepreg sheets offer precise control over fiber alignment and resin distribution.
- Layup and Curing: The prepreg sheets are cut into specific dimensions and stacked layer by layer in a mold, aligning the fibers according to the desired pattern. The assembly is then cured under heat and pressure, transforming the prepreg into a solid structure.
- Post-processing: Once cured, the tubes undergo various post-processing steps, such as sanding, trimming, and surface treatment, to achieve the desired final dimensions, smoothness, and appearance.
Unique Properties of 3K Carbon Fiber Tubes
3K carbon fiber tubes possess several unique properties that make them highly desirable in various applications:
- High Strength-to-Weight Ratio: The 3K carbon fiber's arrangement of 3,000 filaments in each tow provides exceptional strength while maintaining a lightweight profile. This property is crucial in industries where weight reduction is essential, such as the aerospace and automotive sectors.
- Excellent Stiffness: The aligned fibers provide high stiffness, ensuring minimal deflection under load. This property makes them ideal for applications that require rigidity and stability, such as robotics and industrial equipment.
- Corrosion and Fatigue Resistance: Carbon fiber composites, including 3K carbon fiber tubes, exhibit excellent resistance to corrosion and fatigue, making them suitable for outdoor and demanding environments.
